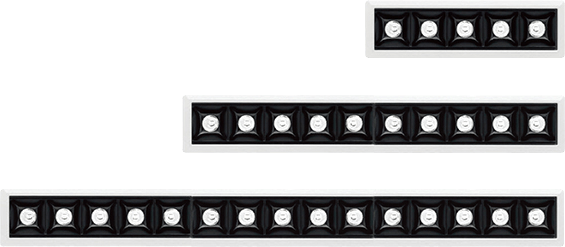

Mini Multiple LED Wall Wash
J-BOX Downlight (No Housing Required)

High Brightness
150 Lumens per watt

CRI
90+ CRI The highest in the industry for better color vibrancy full Spectrum Illumination.

Adjustable  Light source
Perfect for Pictures, Art work, displays, wall washing and Vaulted sloped ceilings.
Series: D01 Series
Indoor | Recessed Lighting
SKU Lamp Code Size Wattage CCT Efficiency Lumens CRI Voltage Download
LU10091-X D01-10W-XXK-5T-A 5" 10W 2700K, 3000K, 3500K, 4000K, 5000K 150 LPW 750 lm >90 120V Spec Sheet
LU10092-X D01-20W-XXK-10T-A 11″ 20W 2700K, 3000K, 3500K, 4000K, 5000K 150 LPW 1500 lm >90 120V Spec Sheet
LU10093-X D01-30W-XXK-15T-A 16" 30W 2700K, 3000K, 3500K, 4000K, 5000K 150 LPW 2250 lm >90 120V Spec Sheet

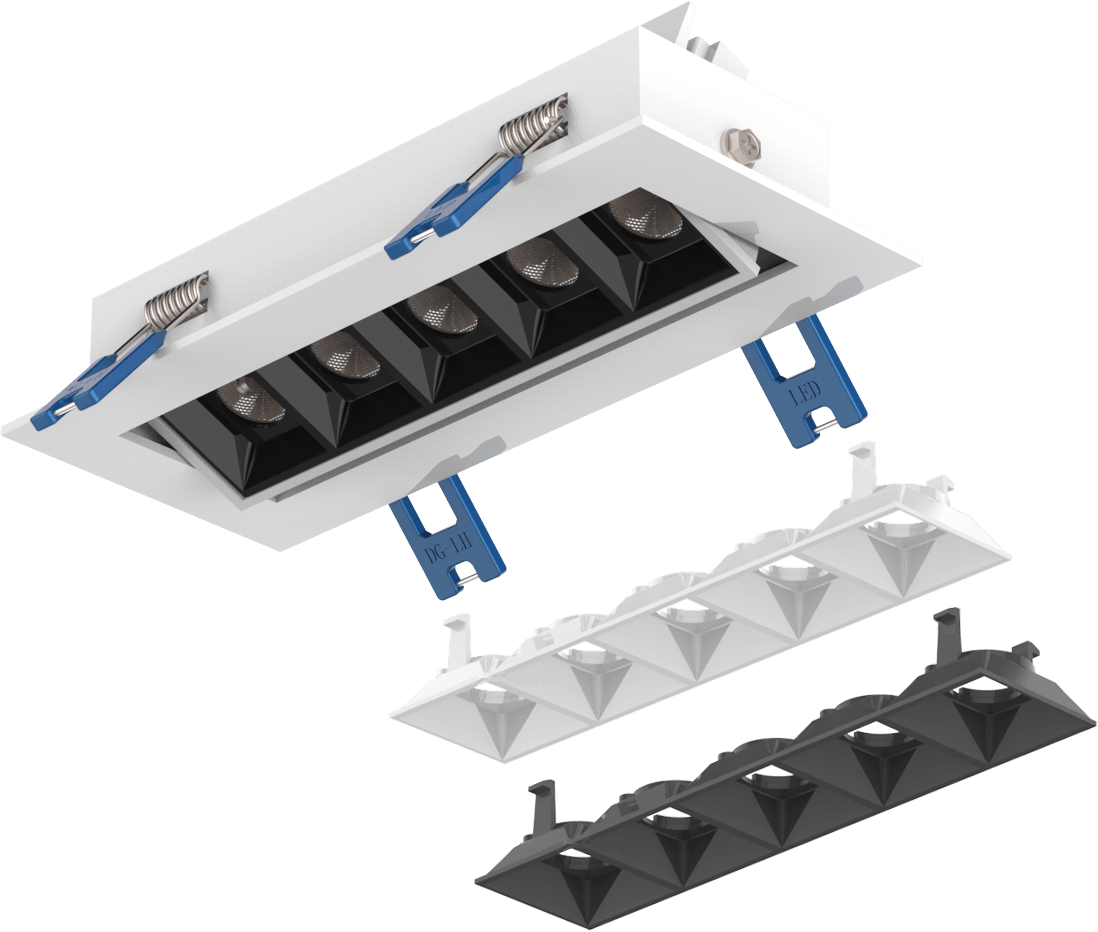

Reflector
Optional White or Black Reflector.
Color Temp
4 color option choose between either 30k, 35k, 40k 50K  model.
90+ CRI
The highest in the industry! for better color vibrancy full Spectrum Illumination.

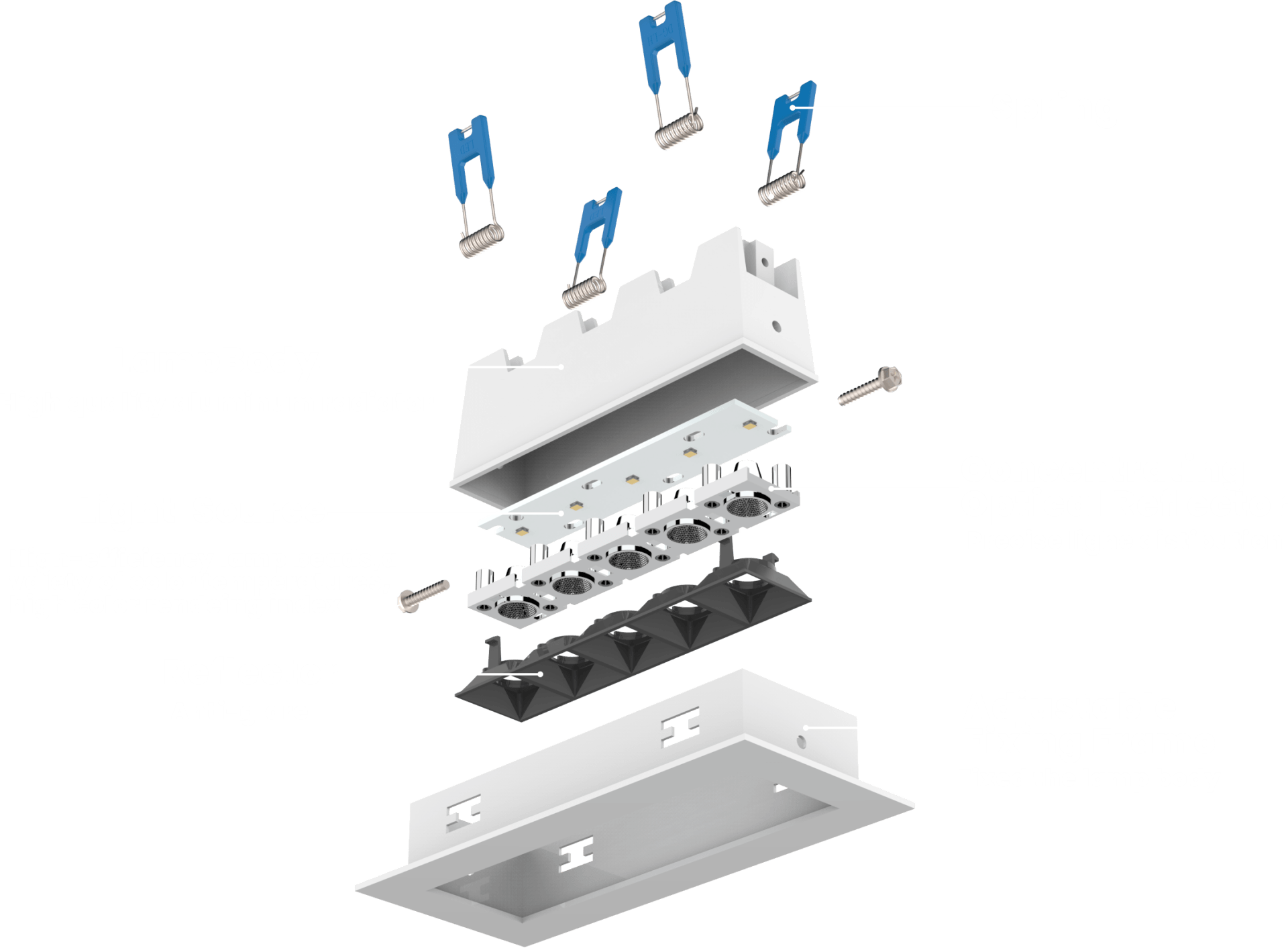

Construction


IC rated
for direct wire and ceiling installation

Die cast aluminum body construction
Engineered to maximize heat Dissipation.

High Tension ceiling springs
Will always hug the ceiling tight

Driver
Non Ficker Driver
Medically proven to eliminate eye strain and no more waves and lines on your video screen. Did you ever notice the waves or lines on your monitor when you are recording video. Our product has non flicker technology eliminates all visual defects.

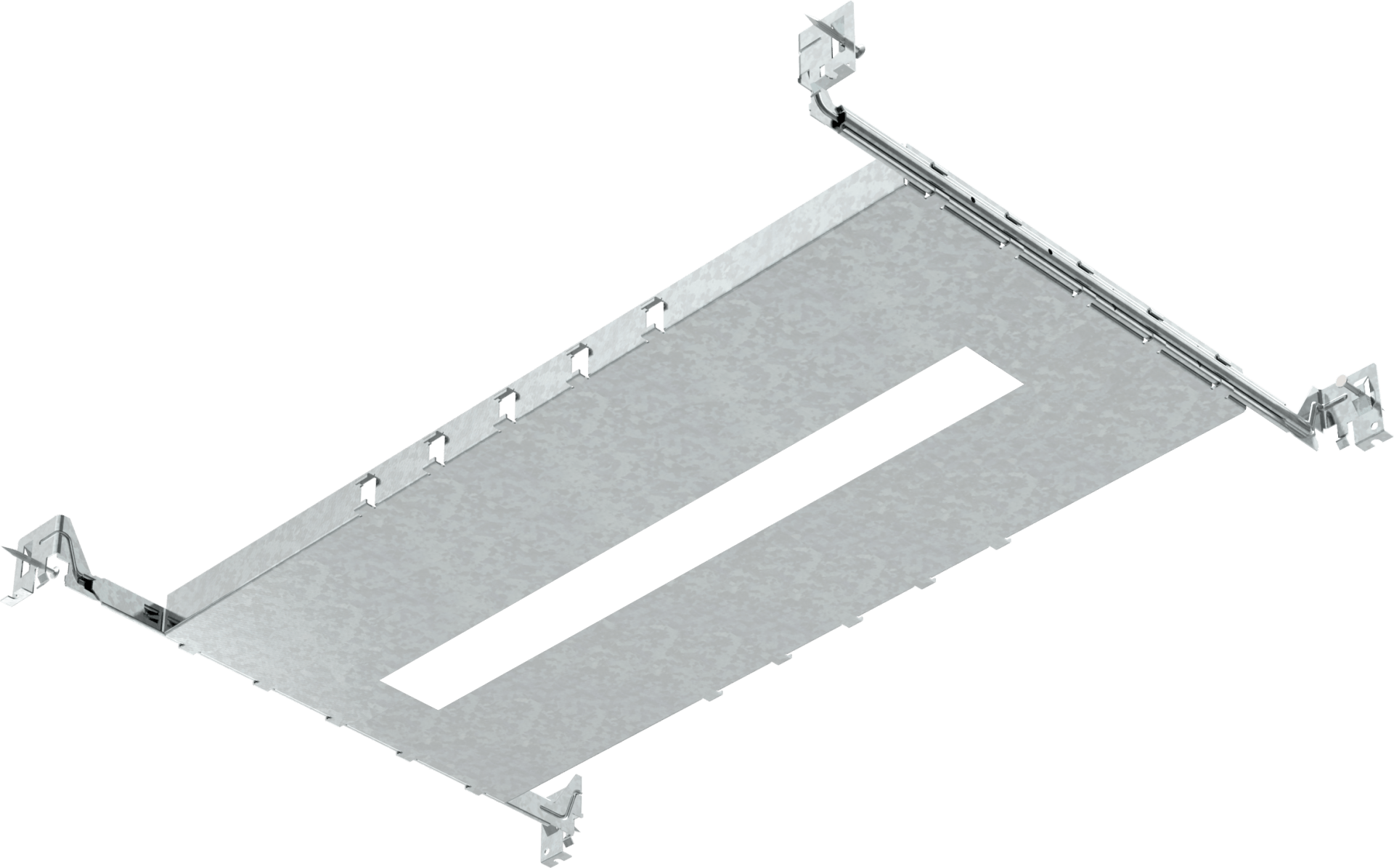

Accessories

Universal mounting plate is (optional)

Mounting plates is a fast and convenient solution for installing recessed J-BOX style.

Can be installed in New Construction and used with Stud and Joist, NC plate includes hanging bars.
