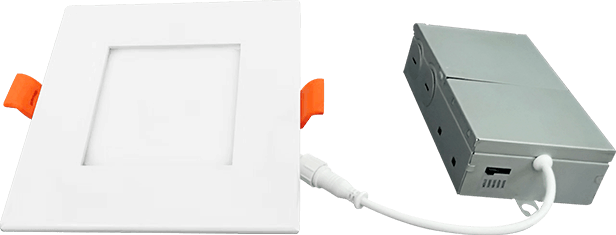

SLIM DISC EXTERNAL J-BOX

Slim Design
Can be mounted directly under the beam.

5 CCT  White Color  Select
From the warmest of whites to the coolest of
whites all in one fixture.

Engineered in USA
High quality design.
Series: KP10 Series
Indoor | Recessed Lighting
SKU Lamp Code Size Wattage CCT Efficiency Lumens CRI Voltage Download
LU10079-Z KP10-9W-4NV-ZZK-LS 4'' 9W 2700K-3000K-3500K-4000K-5000K 70 LPW 630 lm >92 120V Spec Sheet

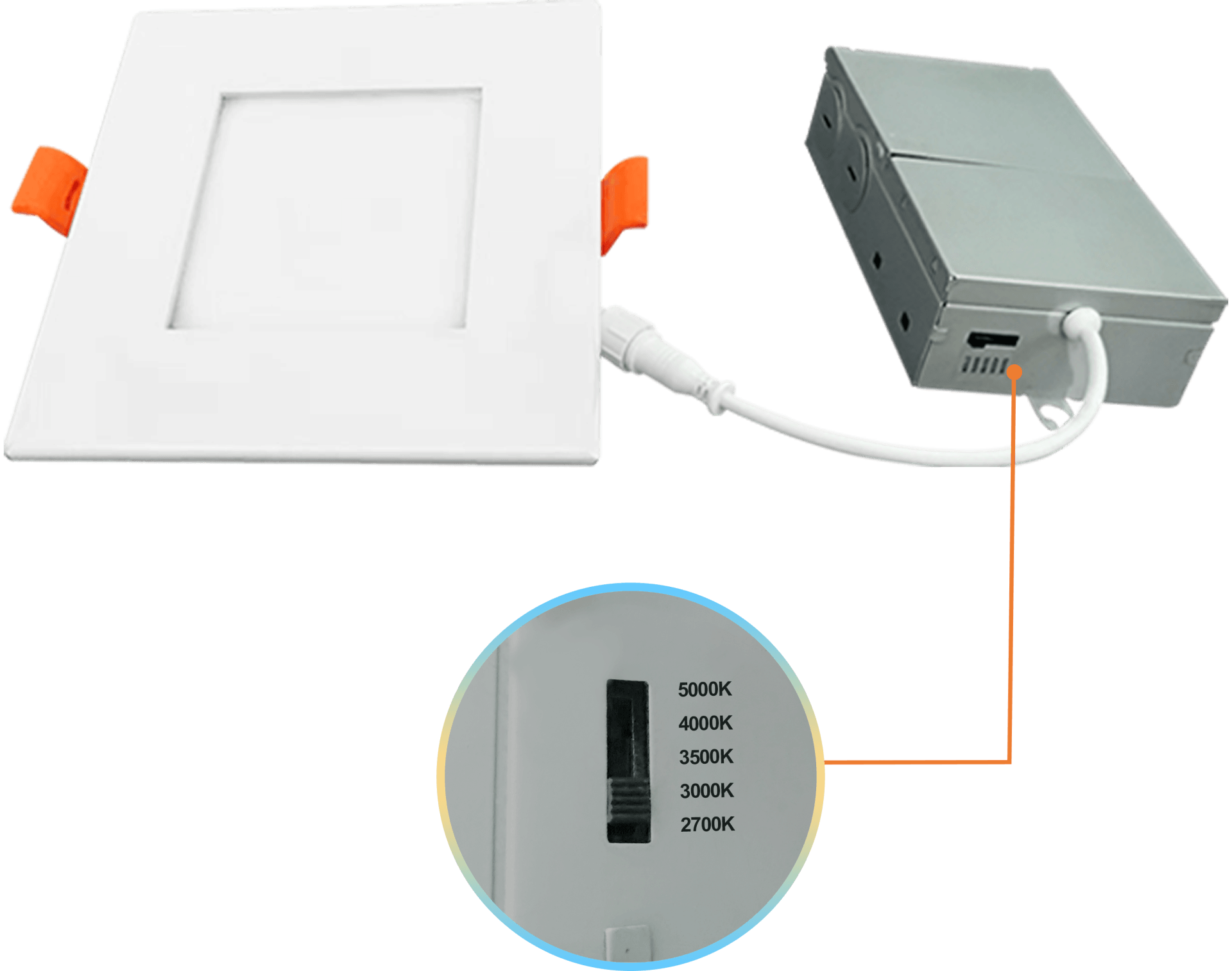

Field Selectable 5 CCT

Built In CCT Switch
5 selectable white colors: 27K, 30K, 35K, 40K, 50K.

Color Corrected
High 92+CRI for better color vibrancy and full spectrum illumination.


Construction

Powder Coat Finish with Heat Treated Acrylic
It will never peel, chip or discolor. Designed for life.

Die Cast Heat Sink
Maximizes passive thermal management and achieves a L70 rated lifetime of better then 50,000 hours.

No Flicker
Medically proven to eliminate eye strain and headaches. Our non flicker technology is medically proven to also reduce epileptic seizures.

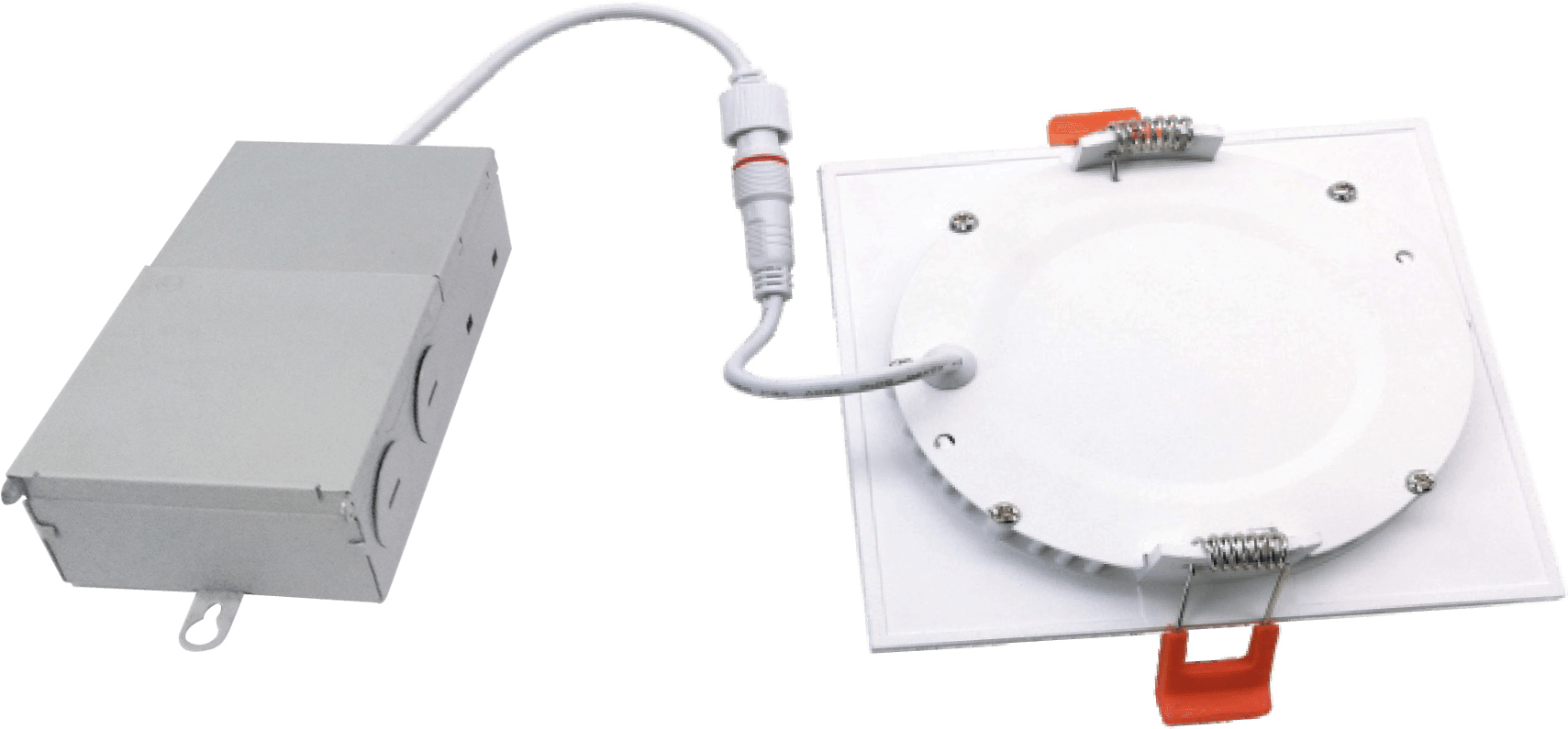

Remodel Installation

Low profile design is IC rated for direct contact with insulation, air tight and can be used in wet Locations.

A low profile slim design facilitates mounting in confined ceilings spaces like directly under a beam or narrow soffits.

Easy to install. Tools may not be required.

Universal Mounting Plate (Optional)

New construction Universal Mounting Plates are a fast and convenient solution for installing recessed J-Box fixtures. This is the Industry's first one size fits all plate, allowing for a wide range of different sized recessed J-Box fixtures.

Installs onto STUD and JOISTS.
