Linear High Bay | Single Lens | S23 Series

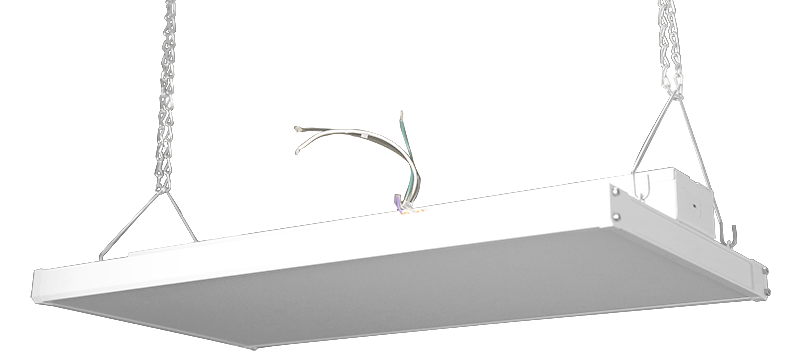

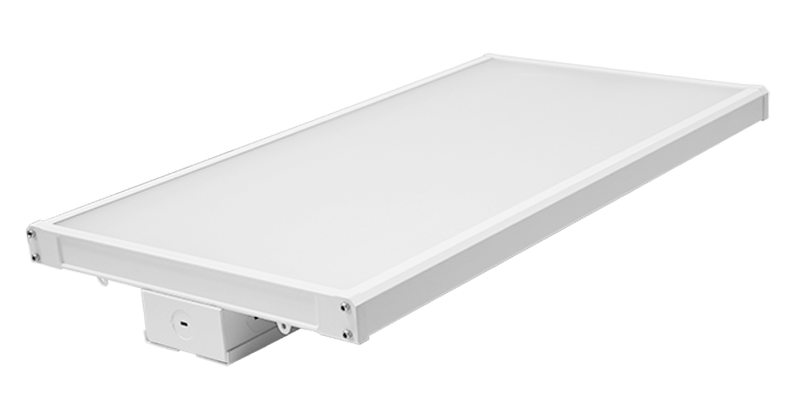

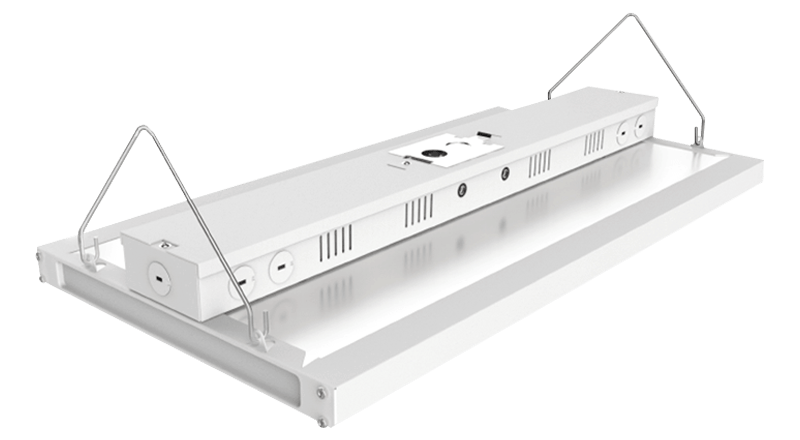

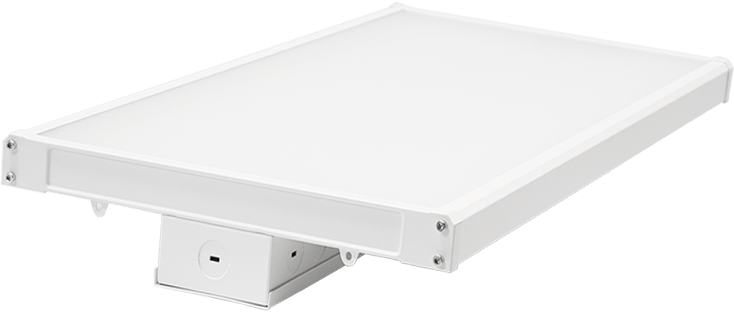

LED LINEAR HIGH BAY
A modern warehouse must. These linear highbays are extremely pleasing to the eyes, deliver a whopping amount of light and priced as a budget fixture.
Series:
S23 Series
Indoor Lighting
| SKU | Lamp Code | Size | Wattage | CCT | Lm/W | Lumens | CRI | Voltage | Sensor | IES File | LM79 File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44-31002-XX | 33-LHB-12-7105-8XX-D-N-LP | 1x2' | 105W | 40K,50K | 129.00 lm/W | 13545lm | >70 | 120-277V | Optional | .ies | LM79 |
| 44-31004-XX | 33-LHB-12-7165-8XX-D-N-LP | 1x2' | 165W | 40K,50K | 129.00 lm/W | 21285 lm | >70 | 120-277V | Optional | .ies | LM79 |
| 44-31007-XX | 33-LHB-14-7225-8XX-D-N-LP | 1x4' | 225W | 40K,50K | 129.00 lm/W | 41280 lm | >70 | 120-277V | Optional | .ies | LM79 |
| 44-31006-XX | 33-LHB-14-7320-8XX-D-N-LP | 1x4' | 320W | 40K,50K | 136.00 lm/W | 30557 lm | >70 | 120-277V | Optional | .ies | LM79 |
SPECIFICATIONS

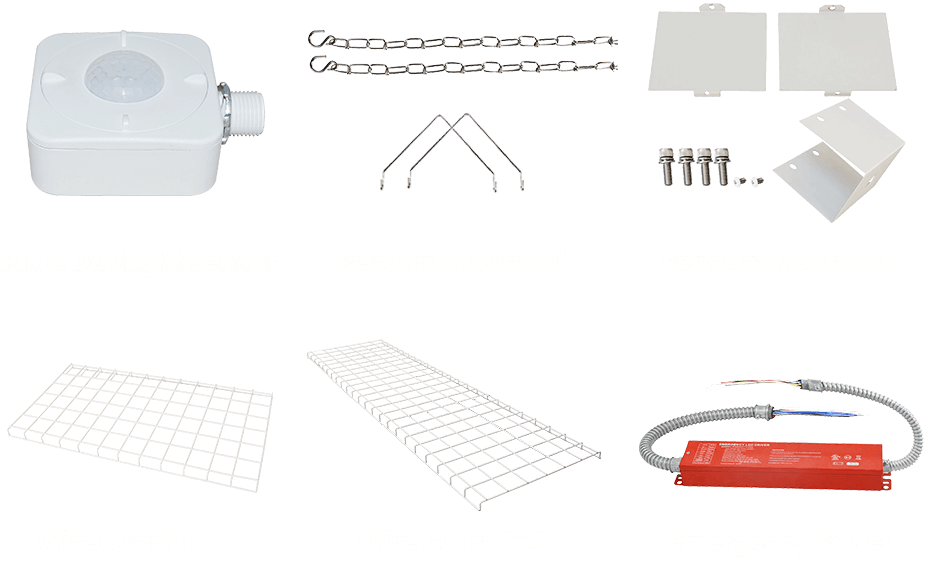

ACCESSORIES
