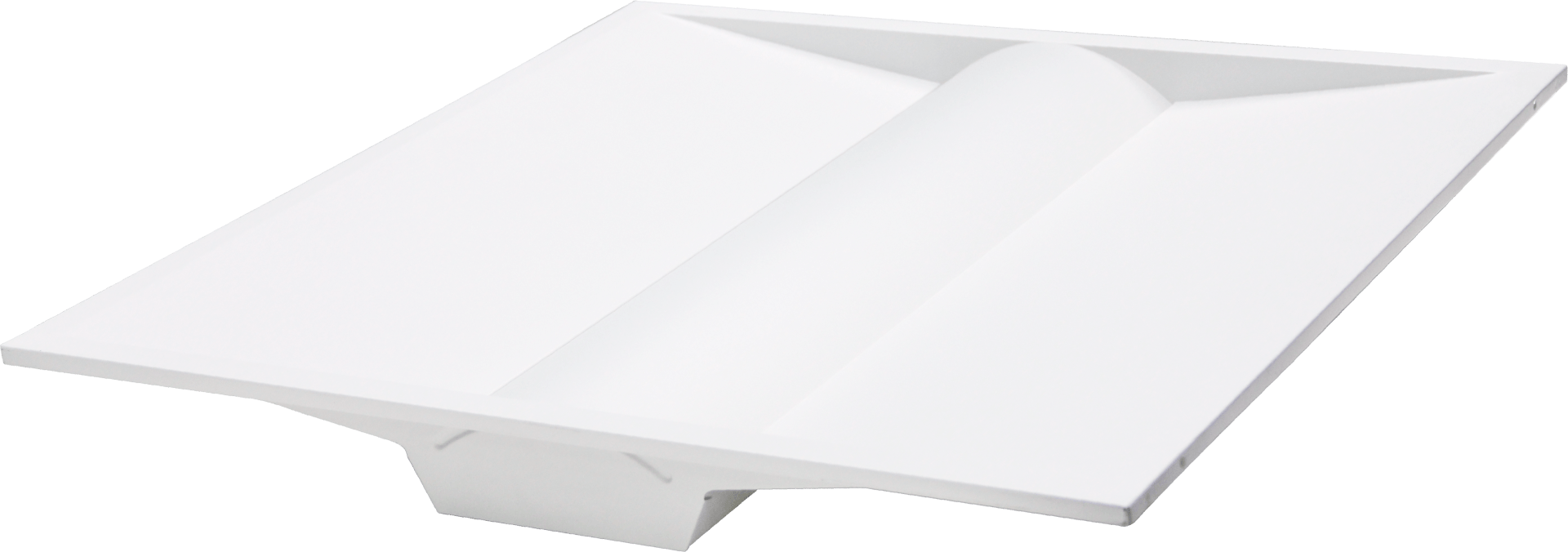

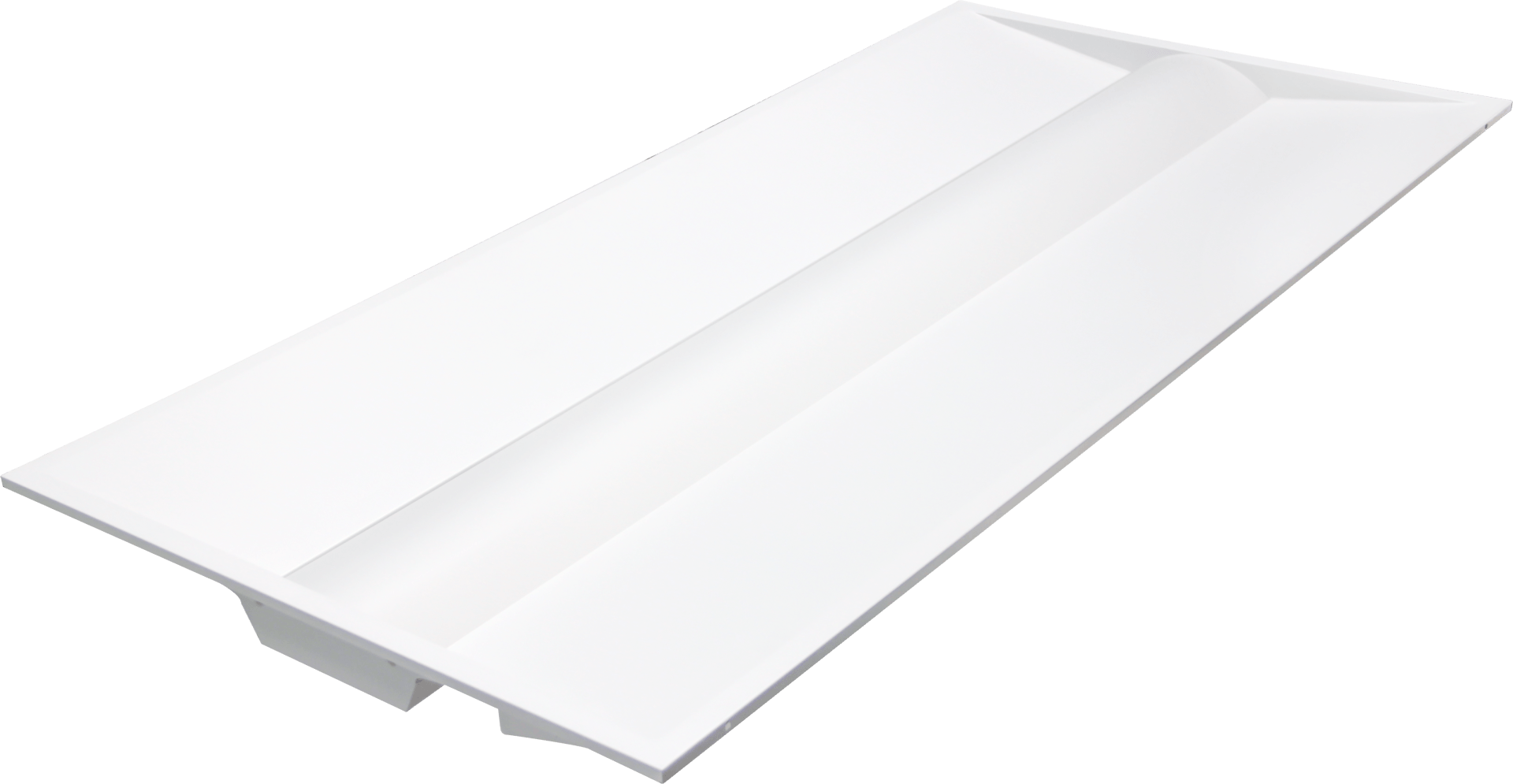

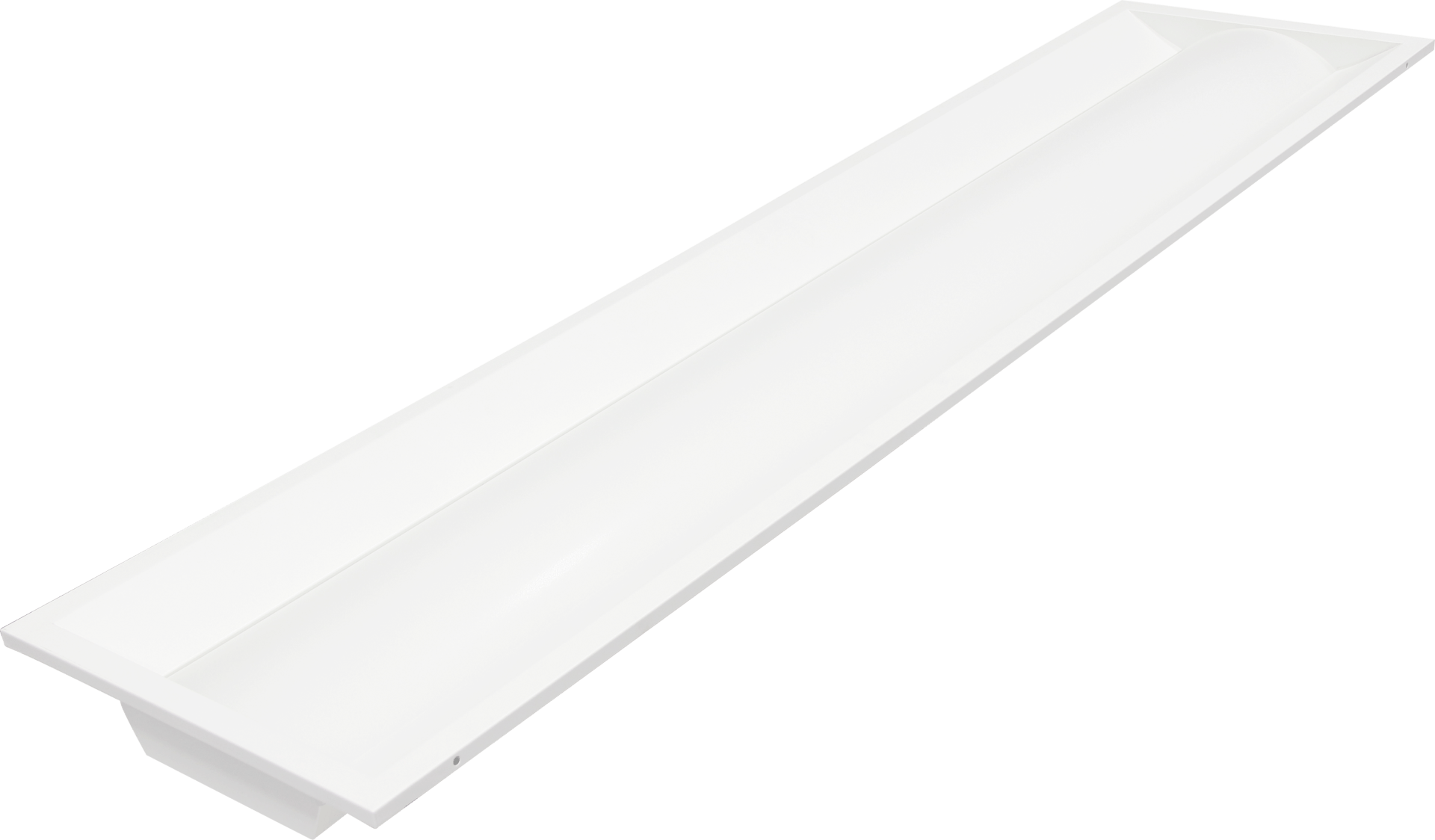

Slim Center Basket Troffers | Gen II | TR40 Series
LED TROFFER
A new generation of low-profile budget center basket troffers have been added to our product line. This is the preferred choice for retrofit installers. These are aesthetically pleasing for environments that require a warmer yet professional presentation.
Series:
TR40 Series
Indoor Lighting
| SKU | Lamp Code | Size | Wattage | CCT | Lm/W | Lumens | CRI | Voltage | Sensor | IES File | LM79 File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 57-33051-XX | TR40-30W-14-XXK-P-S | 1x4' | 30W | 40K,50K | 130.00 lm/W | 3900 lm | >80 | 120-277V | Occ+Daylight | .ies | LM79 |
| 57-33052-XX | TR40-40W-14-XXK-P-S | 1x4' | 40W | 40K,50K | 130.00 lm/W | 5200 lm | >80 | 120-277V | Occ+Daylight | .ies | LM79 |
| 57-33053-XX | TR40-20W-22-XXK-P-S | 2×2' | 20W | 40K,50K | 135.37 lm/W | 2836 lm | >80 | 120-277V | Occ+Daylight | .ies | LM79 |
| 57-33055-XX | TR40-30W-22-XXK-P-S | 2×2' | 30W | 40K,50K | 145.91 lm/W | 4564 lm | >80 | 120-277V | Occ+Daylight | .ies | LM79 |
| 57-33057-XX | TR40-40W-22-XXK-P-S | 2×2' | 40W | 40K,50K | 130.00 lm/W | 5200 lm | >80 | 120-277V | Occ+Daylight | .ies | LM79 |
| 57-33058-XX | TR40-30W-24-XXK-P-S | 2×4' | 30W | 40K,50K | 125.00 lm/W | 3750 lm | >80 | 120-277V | Occ+Daylight | .ies | LM79 |
| 57-33060-XX | TR40-40W-24-XXK-P-S | 2×4' | 40W | 40K,50K | 130.00 lm/W | 5200 lm | >80 | 120-277V | Occ+Daylight | .ies | LM79 |
| 57-33061-XX | TR40-50W-24-XXK-P-S | 2×4' | 50W | 40K,50K | 130.00 lm/W | 6500 lm | >80 | 120-277V | Occ+Daylight | .ies | LM79 |
| 57-33082-XX | TR40-30W-14-XXK-P-N | 1x4' | 30W | 40K,50K | 130.00 lm/W | 3900 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-33083-XX | TR40-40W-14-XXK-P-N | 1x4' | 40W | 40K,50K | 130.00 lm/W | 5200 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-33084-XX | TR40-20W-22-XXK-P-N | 2×2' | 20W | 40K,50K | 135.37 lm/W | 2836 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-33086-XX | TR40-30W-22-XXK-P-N | 2×2' | 30W | 40K,50K | 145.91 lm/W | 4564 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-33088-XX | TR40-40W-22-XXK-P-N | 2×2' | 40W | 40K,50K | 130.00 lm/W | 5200 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-33089-XX | TR40-30W-24-XXK-P-N | 2×4' | 30W | 40K,50K | 125.00 lm/W | 3750 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-33091-XX | TR40-40W-24-XXK-P-N | 2×4' | 40W | 40K,50K | 130.00 lm/W | 5200 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-33092-XX | TR40-50W-24-XXK-P-N | 2×4' | 50W | 40K,50K | 130.00 lm/W | 6500 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
SPECIFICATIONS

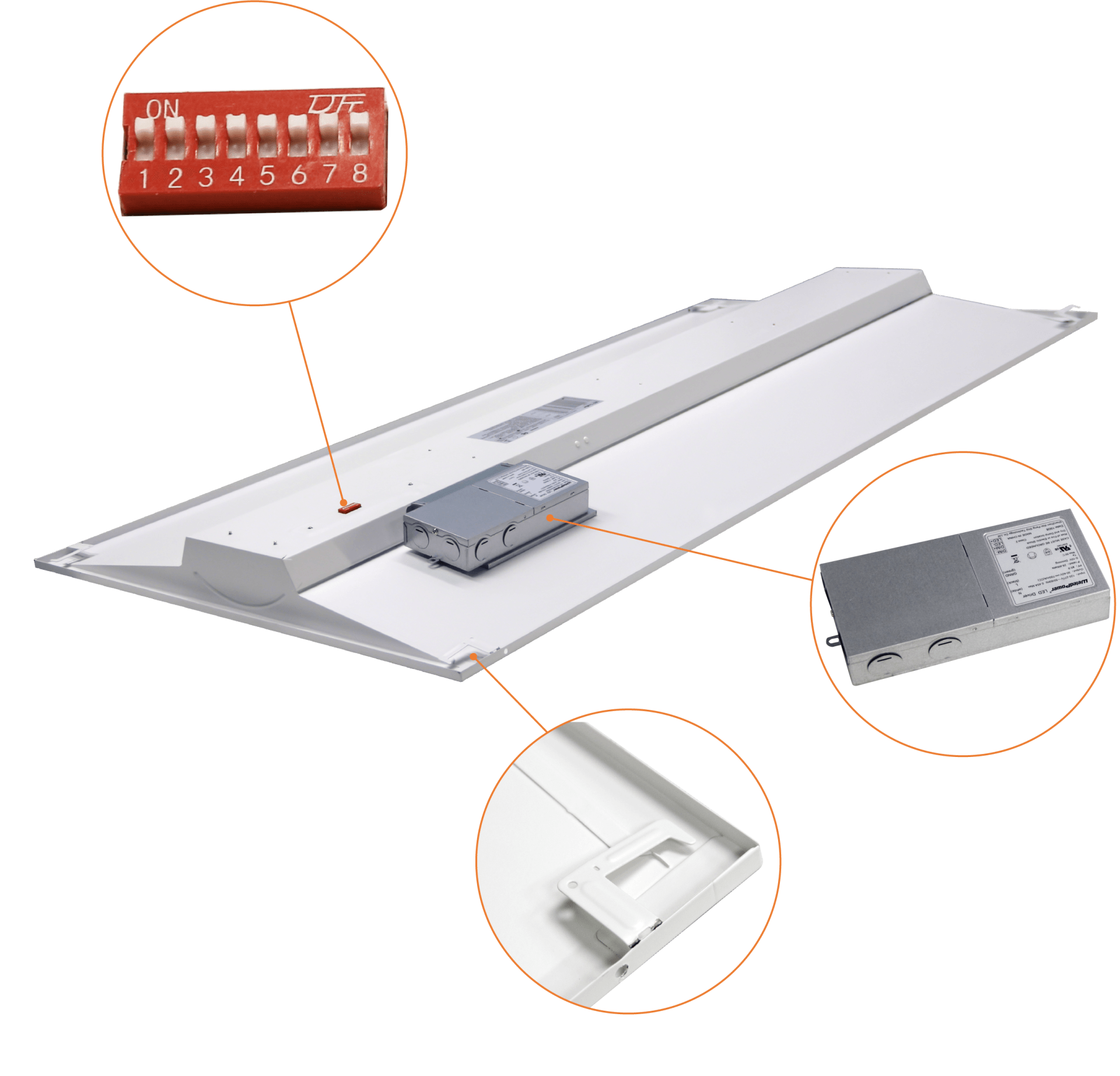

Dip switch for remote control.
Built on hooks for hanging.
HQ driver for better dependability and performance.
ACCESSORIES
