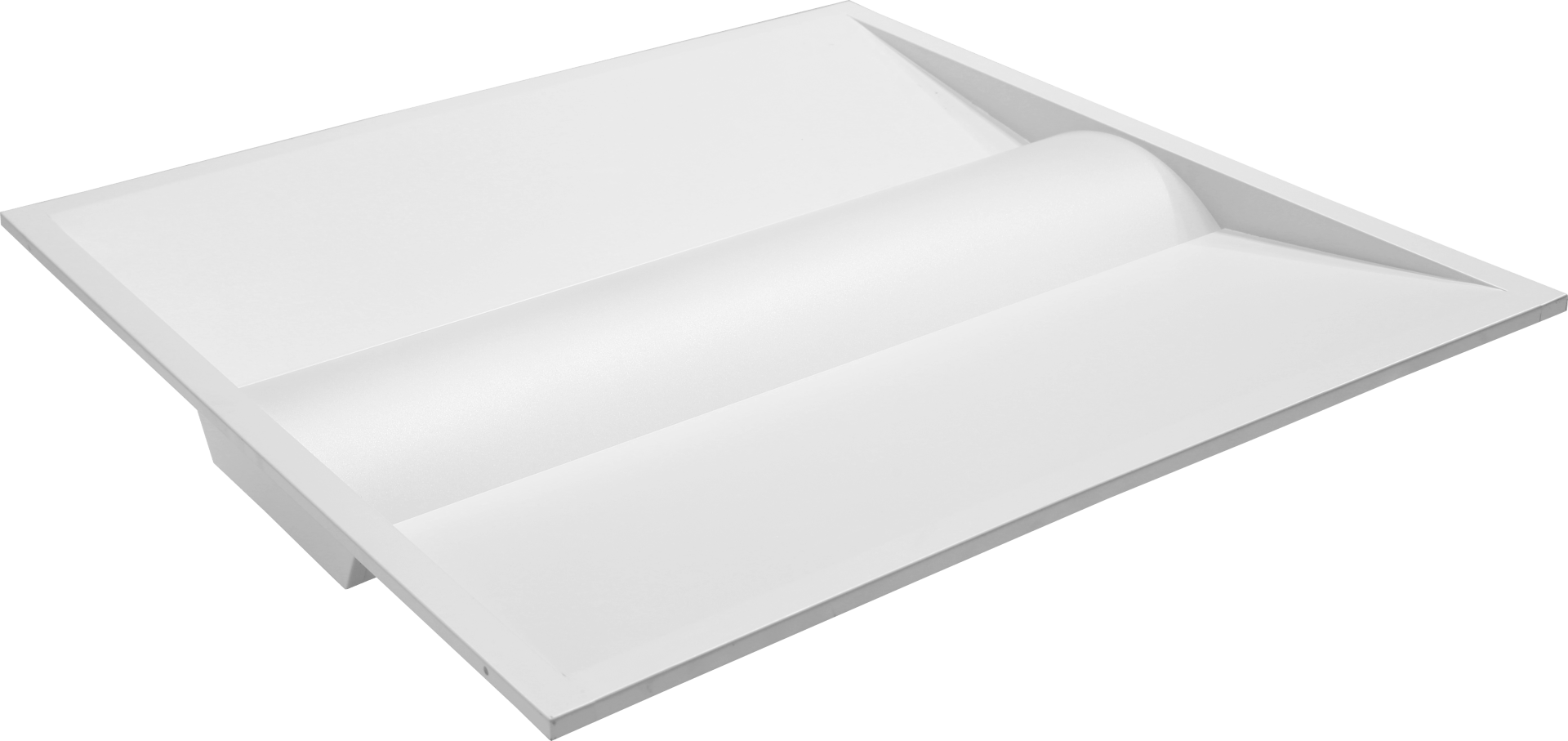

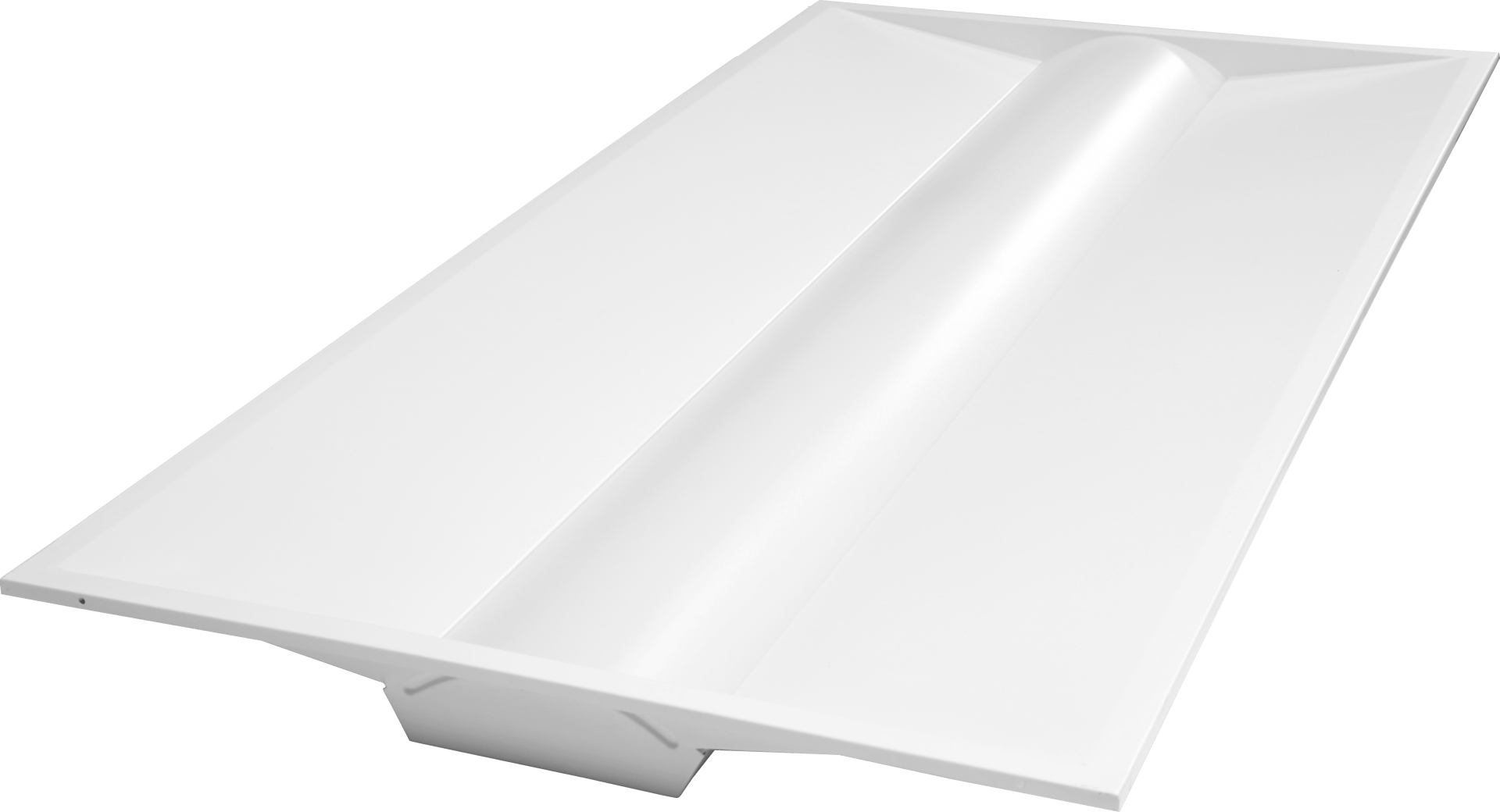

Slim Center Basket Troffers | Gen I | SY20 Series
LED TROFFER

These low profile center basket troffers offer a higher performance yet budget friendly lighting solution that's more aesthetically pleasing for environments that require a warmer yet professional presentation. A great cost effective replacement for traditional fluorescent lamp troffers.
Series: SY20/SY21  Series
Indoor Lighting
SKU Lamp Code Size Wattage CCT Lm/W Lumens Voltage Sensor IES File LM79 File
44-33063-XX 44-6060-30W-XXK-TR2-D-N-B 2×2' 30W 40K,50K 127.96 lm/W 3991 lm 120-277V No Sensor .ies LM79
44-33066-XX 44-6012-40W-XXK-TR2-D-N-B 2×4' 40W 40K,50K 127.83 lm/W 5236 lm 120-277V No Sensor .ies LM79
44-33025-XX 44-6060-20W-XXK-TR2-D-S-B 2×2' 20W 40K,50K 127.63 lm/W 2500 lm 120-277V Occ+Daylight .ies LM79
44-33026-XX 44-6060-30W-XXK-TR2-D-S-B 2×2' 30W 40K,50K 127.96 lm/W 3911 lm 120-277V Occ+Daylight .ies LM79
44-33028-XX 44-6012-30W-XXK-TR2-D-S-B 2×4' 30W 40K,50K 127.92 lm/W 4009 lm 120-277V Occ+Daylight .ies LM79
44-33029-XX 44-6012-40W-XXK-TR2-D-S-B 2×4' 40W 40K,50K 127.83 lm/W 5236 lm 120-277V Occ+Daylight .ies LM79
44-33030-XX 44-6012-50W-XXK-TR2-D-S-B 2×4' 50W 40K,50K 127.61 lm/W 6455 lm 120-277V Occ+Daylight .ies LM79
44-33075 33-TR-22-730-8ZZ-D-S-CT 2×2' 30W CCT Tunable 121.53 lm/W 3527 lm 120-277V Occ+Daylight .ies LM79
44-33078 33-TR-24-740-8ZZ-D-S-CT 2×4' 40W CCT Tunable 124.16 lm/W 5003 lm 120-277V Occ+Daylight .ies LM79
SPECIFICATIONS

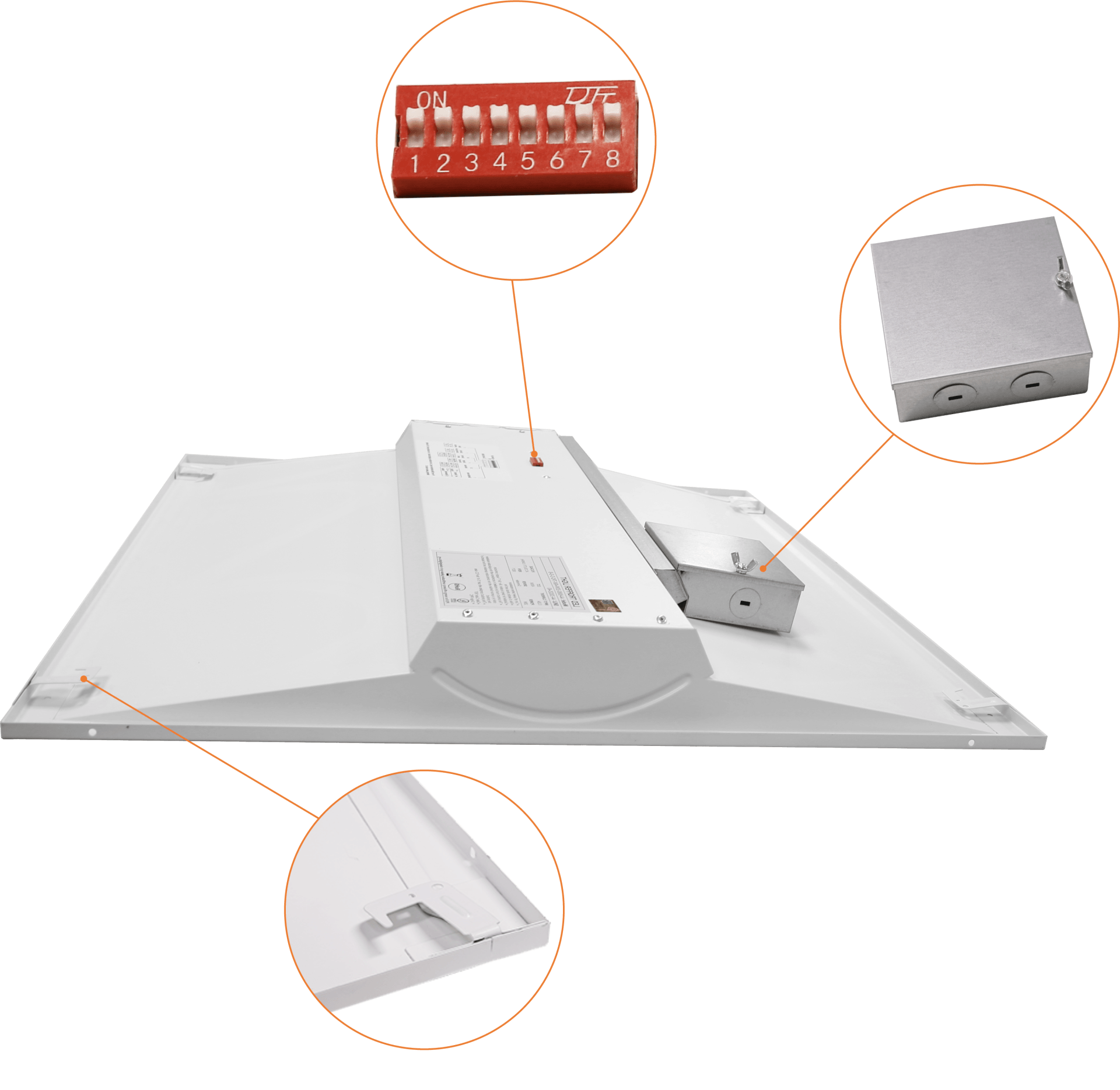

 Dip switch for frequency tuning.

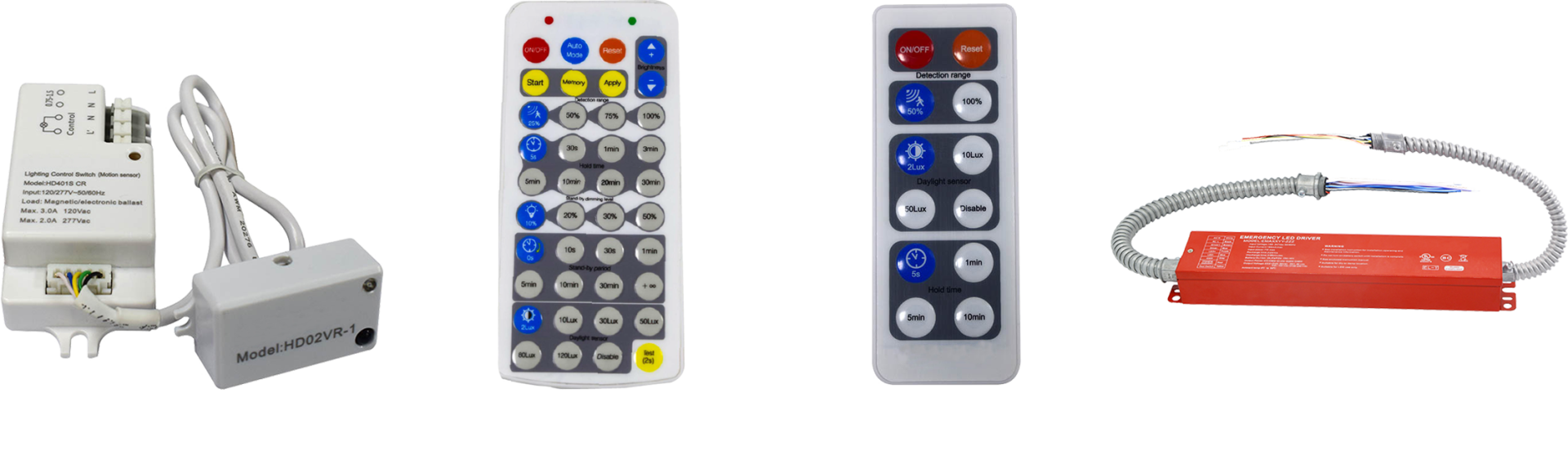

ACCESSORIES
