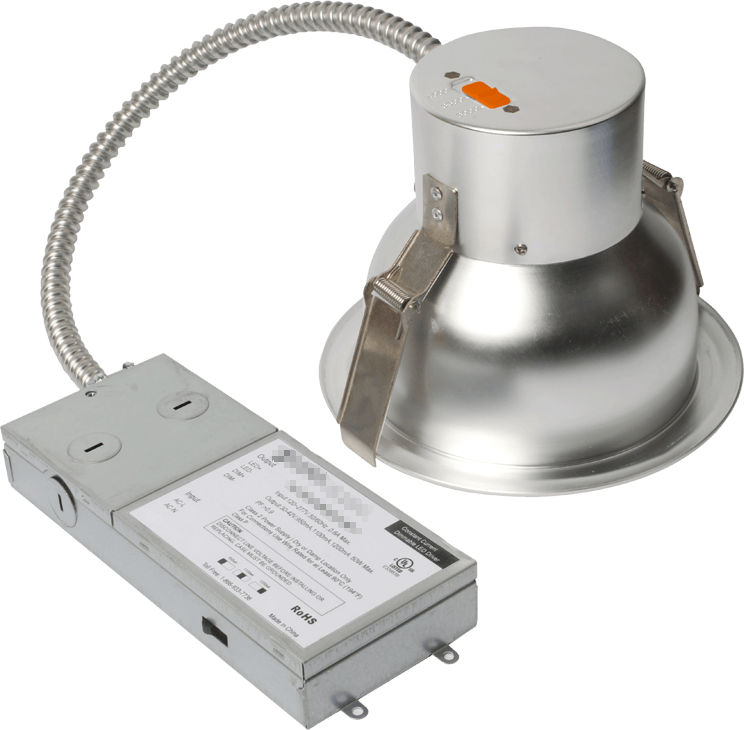

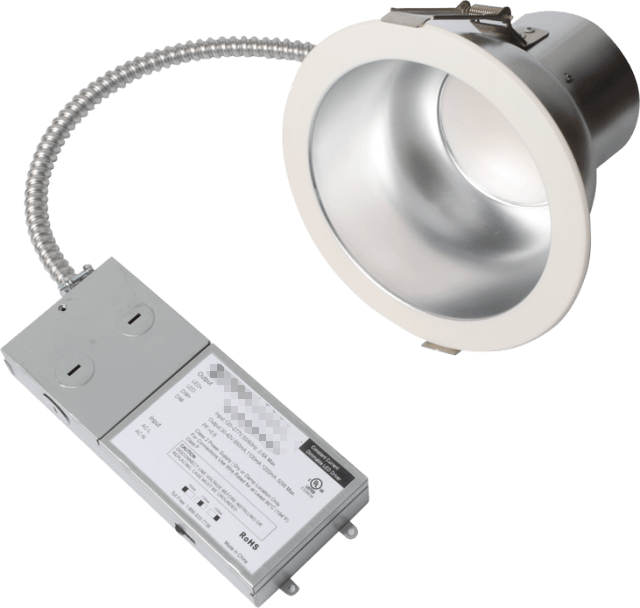

8" HO CCT&Lumen Selectable | ST10 Series
High Output INTEL A LIGHT 8"
Intelligent Commercial Downlight
(No housing required)
High Lumens
Finally a high power LED down light that can replace and retrofit HID down lights
Field Select 3 CCT Selectable
Color Temperature from 3000K, 3500K, 4000K, 5000K
Field Select 3 Wattage Selectable
Choose from 3 different lumen outputs.
92+ Color Rendering Index (CRI)
The highest in the industry for better color vibrancy full spectrum illumination.
Series: ST10 Series
Indoor | Recessed Lighting
Indoor | Recessed Lighting
| SKU | Lamp Code | Size | Wattage | CCT | Efficiency | Lumens | CRI | Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|
| LU10134-Z | ST10-11.5W-8NV-ZZK-C90-1 | 8'' | 11.5W/7.5W/6W | 3000K-3500K-4000K | 80 LPW | 920lm/600lm/480lm | >92 | 120-277 V | Spec Sheet |
| LU10135-Z | ST10-11.5W-8NV-ZZK-C90-2 | 8'' | 11.5W/7.5W/6W | 3500K-4000K-5000K | 80 LPW | 920lm/600lm/480lm | >92 | 120-277 V | Spec Sheet |
| LU10136-Z | ST10-30W-8NV-ZZK-C90-1 | 8'' | 30W/23W/15W | 3000K-3500K-4000K | 80 LPW | 2400lm/1840lm/1200lm | >92 | 120-277 V | Spec Sheet |
| LU10137-Z | ST10-30W-8NV-ZZK-C90-2 | 8'' | 30W/23W/15W | 3500K-4000K-5000K | 80 LPW | 2400lm/1840lm/1200lm | >92 | 120-277 V | Spec Sheet |
| LU10138-Z | ST10-50W-8NV-ZZK-C90-1 | 8'' | 50W/42W/37W | 3000K-3500K-4000K | 80 LPW | 4000lm/3360lm/2960lm | >92 | 120-277 V | Spec Sheet |
| LU10139-Z | ST10-50W-8NV-ZZK-C90-2 | 8'' | 50W/42W/37W | 3500K-4000K-5000K | 80 LPW | 4000lm/3360lm/2960lm | >92 | 120-277 V | Spec Sheet |

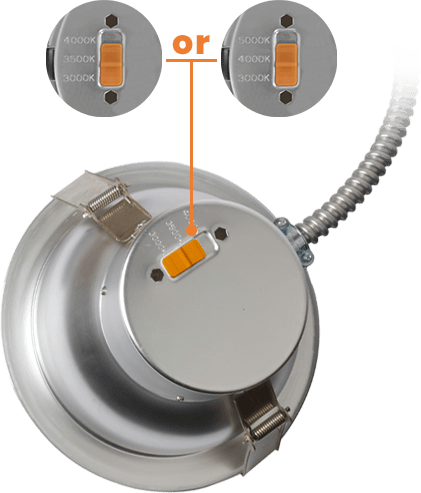

Field Select Color Temperature
Color Selectable Switch
92+ Color Rendering Index (CRI)
The highest in the industry! For better color vibrancy full spectrum illumination.
Certifications
ENERGY STAR® certified fixture.
ETL, certified.
4 color option choose between either 3000k, 3500k, 4000k or 5000k. Select from the warmest of whites to the coolest of whites. Never worry about having the correct color temperature for a customer or project again.
92+ Color Rendering Index (CRI)
The highest in the industry! For better color vibrancy full spectrum illumination.
Non Flicker Technology
Medically proven to eliminate eye strain and headaches. Our non-flicker technology is medically proven to also reduce epileptic seizures.
Medically proven to eliminate eye strain and headaches. Our non-flicker technology is medically proven to also reduce epileptic seizures.
ENERGY STAR® certified fixture.
ETL, certified.

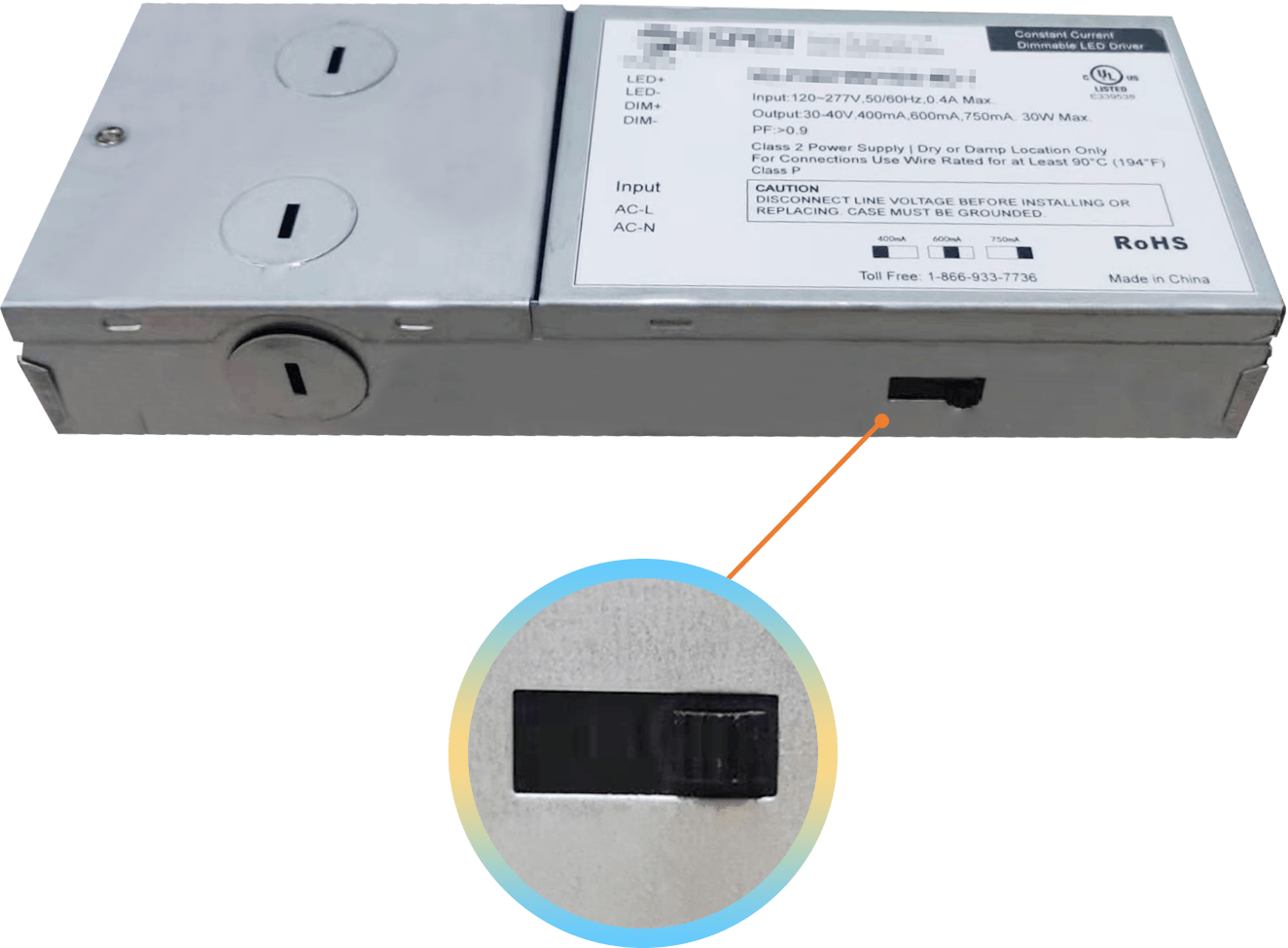

Field Select Power Adjustable
State Of The Art Luminaire
Adjust on Field: Three (3) wattages to choose from.
Select the power and brightness with a touch of a switch.
Luminous Efficiency: 80lm/85lm per watt.
Never worry about having enough light for a customer or project again.
Direct Replacements
LED offers higher efficiency and increased life especially when replacing compact fluorescent, metal halide, incandescent or halogen downlights.
Construction
IC Rated
For direct wire and ceiling installation.
Solid Aluminum
Spun aluminum satin finished reflector
for a smooth even spread of light, Beam Angle: 70°.
MC/BX Cable
Three (3) feet with new innovated quick connect cable that twists and locks together.
Driver
Flicker free, 100-277V, power select.
Larger size splice box with 6 1/2 KO's
PF≥0.9, 0-10V dimmable.
Die cast heat sink. L70 lifetime of 100,000 hours.
Flexible Installation
Rated for IC (Insulation Contact) air tight and damp locations,
This easy-to-install fixture does not require a separate housing as it can be mounted directly into the ceiling.
Spring action clips to accommodate ½” to 2” ceiling
thicknesses. Fixture with remote.
Driver installs and is accessible from below the ceiling.

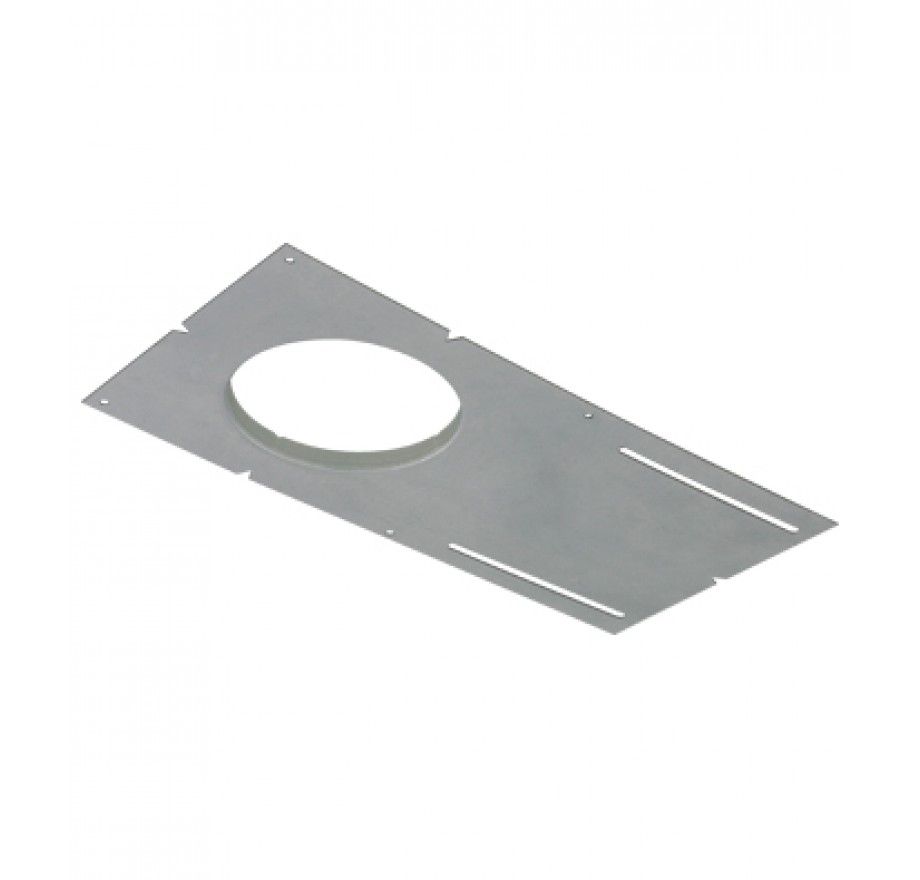

Universal Mounting Plate (Optional)
Universal Mounting Plates are a fast and convenient solution for installing recessed J-Box fixtures. This is the industry's first one size fits all plate, allowing for a wide range of different sized recessed J-Box fixtures.
Installs onto STUD and JOISTS.
